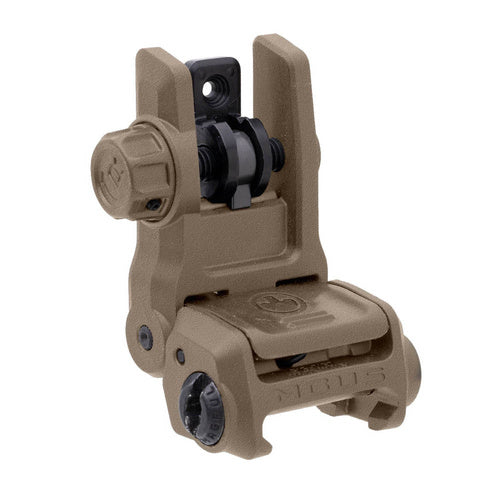

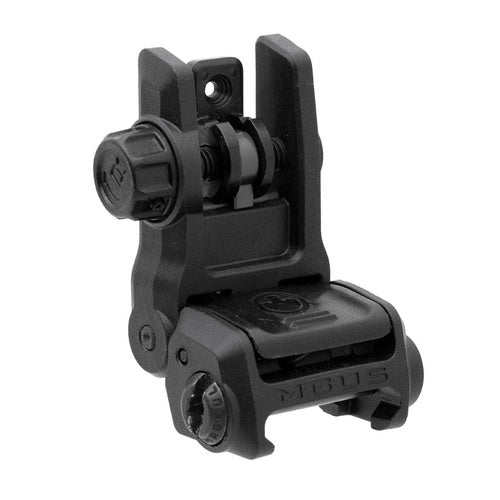

MBUS GEN3 REAR SIGHT

Polymer rear sight for rifles: AR10, AR15, M4, M16, M110, SR25. When folded, its height is only 14 mm.

Adjusted to work in standard and precision shooting modes. Adjustment of settings is made possible by a large, textured knob located to the right of the sight.

The MBUS generation 3 sight is adapted for mounting on a rail in the MIL-STD-1913 Picatinny standard. The sight has been equipped with a spring-loaded opening, which is activated by pressing a button located in the central part of the structure.

Features:

• Stable, well-fitted construction weighing only 30 g
• Standard height of AR sighting sights
• Height of the sight when folded is 14 mm
• Two aiming modes
• Tool-free adjustment
• Mounting with allen key or screwdriver
• MIL-STD-1913 Picatinny standard
• Adapted for platforms: AR10, AR15, M4, M16, M110, SR25
• Weight: 30 g

• Height after folding    14 mm

• Adjustment parameters    ~0.5 MOA (0.606"/100m) per click at 368 mm sight radius
  ~0.4 MOA (0.439"/100m) per click at 508 mm sight radius

• Mounting: MIL-STD-1913 Picatinny
